Brief Introduction

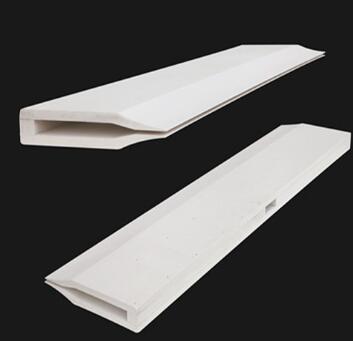

Caster Tip
The caster tip is made of high alumina ceramic fiber and mullite crystal whiskers. The caster tips are used to produce high quality, continuous cast aluminium sheet. The integrated structure endows the tip with good density, so they are suitable with all protection atmospheres for quality results.
Technical Data:
|
Crushing strength(Mpa) |
10Mpa |
|
Bulk Density (g/cm3) |
0.55-0.60 |
|
Linear shrinkage(%) |
0.2 |
|
Service temperature(℃) |
900-1200 |
|
Thermal Conductivity W/（m·K） |
0.108（700℃） |
|
0.106（500℃） |
|
|
0.103（300℃） |
Chemical Composition:
|
SiO2 |
67.76% |
|
Al2O3 |
31.08% |
|
Na2O |
＜0.7% |
|
Fe2O3 |
＜0.3% |
|
CaO |
0.03% |
|
MgO |
0.02% |
Notes:
- Preheating is necessary before service at least 500℃.
- Avoid vibration and keep dry during storage.
- Shelf life of the products is 12 months.
- Customization available.
Main Application:
- Aluminum strip.
- Continuous casting and rolling high precision aluminum board.
- Copper alloy sheet.
- Magnesium alloy sheet.
Caster Tip
