Brief Introduction

Sizing, Forming reducing and profiling rolls are made of tungsten carbide or steel and are used to produce smooth or ribbed wire for the construction reinforcement  field
Application of tungsten carbide roll

With high strength, high hardness and good wear rear resistance, tungsten carbide rolls (composed of WC, Co, Ni and other rare metals) are developed for high-speed wire rolling. To make the best used of carbide rolls, attention should be paid to things listed below:

  • Choice of Grade
          Choose the appropriate grades for different stands
          according to the groove shape rolling speed.
  • Installation of Rolls
          Before installation, cheek the roll, tapered housing
          and roller. The match between roll, roller and tapered
          housing should not be tight or loose. The same grade
          is recommended for the same stand.
  • Cooling of Rolls
             Rolls must be cooled down to prevent thermal fatigue
         crack and to prolong the service life. 4—6 bar cooling
         water pressure is recommended for finishing stands,
         and flow quantity of 250-300L/min, per pass is required.

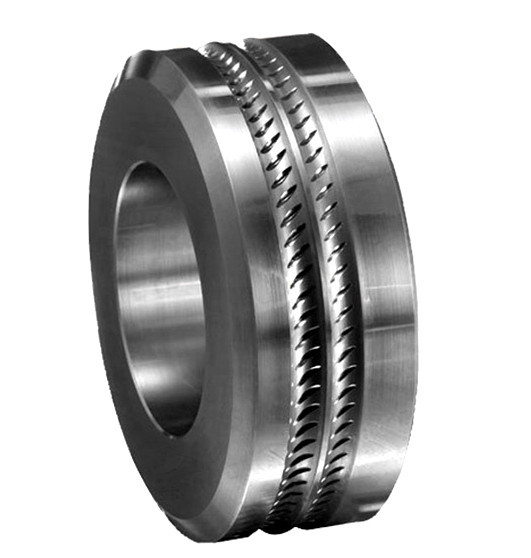

Tungsten Carbide Roll Ring
