Silicon Nitride Bonded Silicon Carbide Products
Silicon Nitride Bonded Silicon Carbide Products

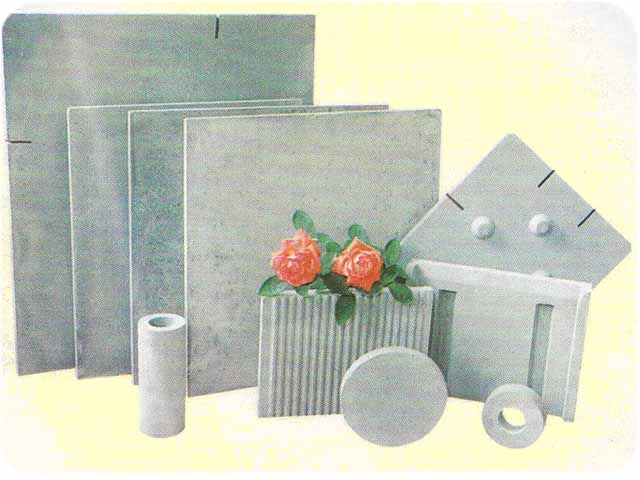

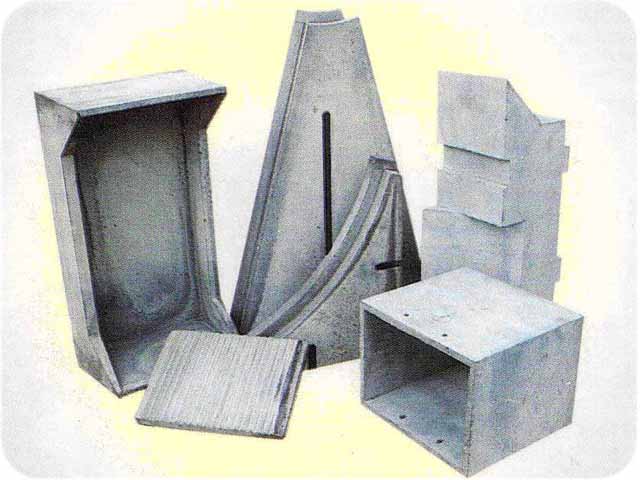

Using high purity SiC and special additives as raw materials, Horton silicon nitride bonded SiC blocks are sintered in nitriding furnace. The product shows high strength, good abrasive resistance under high temperature, high thermal conduction etc. Especially, it offers superior resistance against oxidation, alkaline, CO and thermal shock.
Type | DTZ-1 | DTZ-2 | BSSN-1 | BSSN-2 | ||
Composition% | SiC ≥ | 72 | 70 | 71 | 70 | |
Si3N4 ≥ | 21 | 20 | 21 | 21 | ||
Fe2O3 ≤ | 1.5 | 2.0 | 1.5 | 2.0 | ||
Porosity % ≤ | 17 | 19 | 18 | 20 | ||
Bulk Density g/cm3 ≥ | 2.62 | 2.58 | 2.60 | 2.55 | ||
Compressive Strength at Ambient Temperature Mpa ≥ |
150 |
147 |
150 |
100 |
||
Bending Strength Mpa | Ambient | ≥30 | ≥30 | |||
1400℃ |
≥43 |
≥39.2 |
≥43 |
≥40 |
||
Purpose | Used in blast furnace belly, bosh and lower stack, cooling wall, garbage incinerator and boiler |
In Aluminium electrolyzer,chemical industry reaction pot
|
Used as Kiln shed board, slide pushes board, box, tuyere combined brick. | |||
Features | Good chemical stability and strength at high temperature. High hardness. Good wear and alkali erosion resistance, low thermal expansion coefficient and high thermal conductivity. |
