Brief Introduction


Angular Contact Ball Bearings


Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

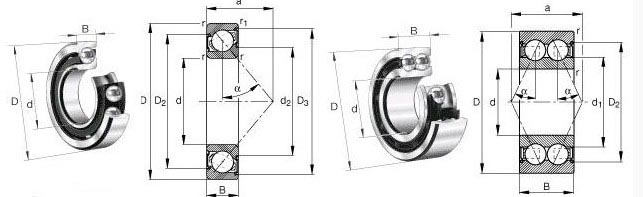

The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.

AMR angular contact ball bearings are produced in a wide variety of designs and sizes. Those commonly used and included in this catalogue are

Single row angular contact ball bearings
Double row angular contact ball bearings
Four-point contact ball bearings
